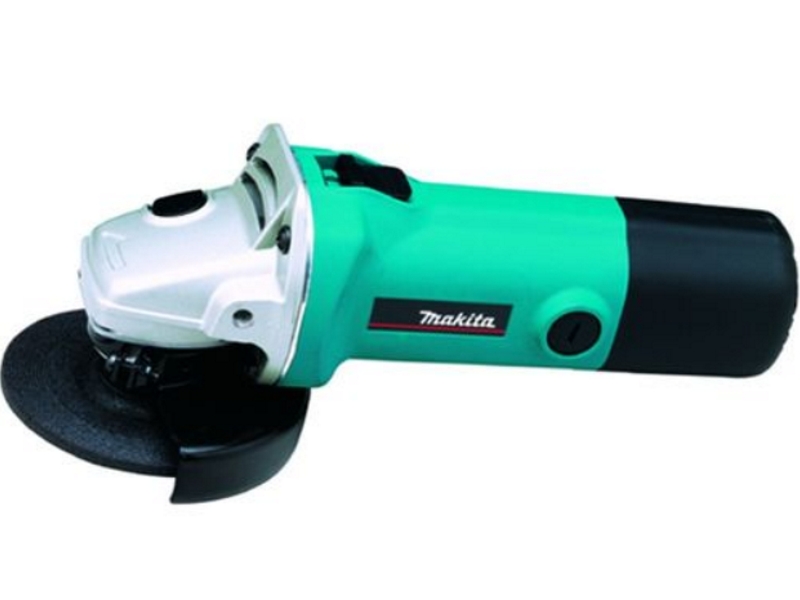

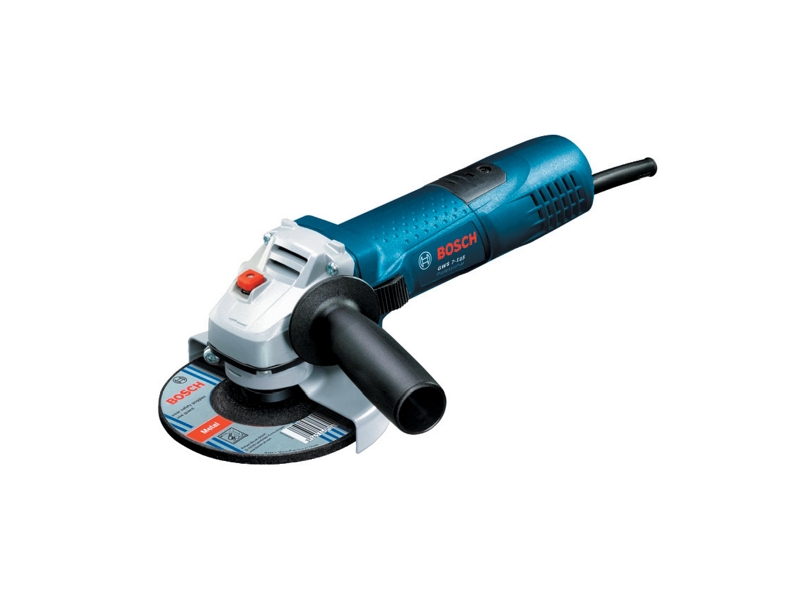

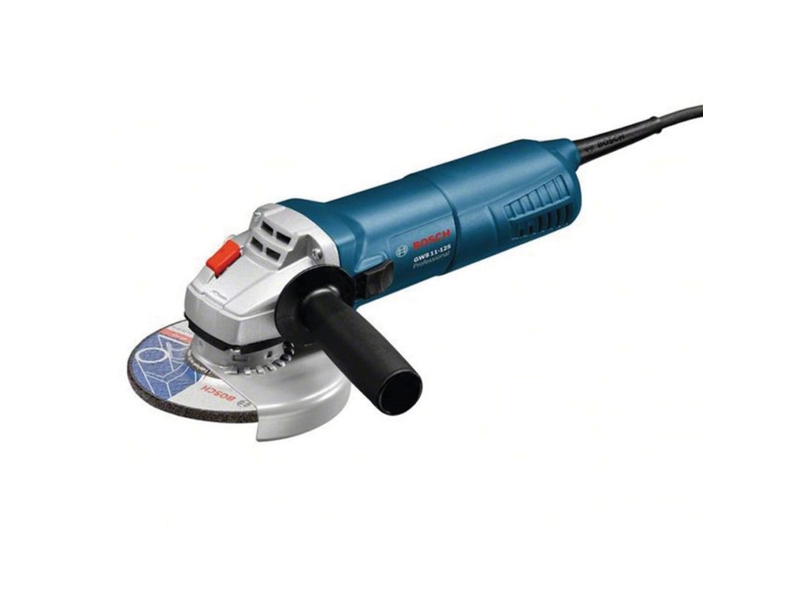

Angle Grinders
Description
Ecco offers a range of powerful, heavy duty angle grinders ideal for cutting, grinding, polishing and
sanding.
Features
- T50-GR-110V-4 - Features a paddle switch for easy lock on / lock off, a spindle lock and disc guard / Single speed / Multi position side handle / Supplied with a side handle and pin spanner
- T50-GR-110v-4.5 – Features a locking spindle / Single speed / Multi position side handle / Supplied with a backing flange
- T50-GR-110V-5 – Small diameter angle grinder featuring a barrel grip / Easy and comfortable handling with minimum hand fatigue aided by the lock-on switch / Ergonomic 20 degree side grip angle / Features machine bevel gears, an anti-restart function and soft start / Small gear housing for easy handling / 720W heat resistant motor
- T50-GR-110V-4 and T50-GR-110v-4.5 - Multi position side handle
- T50-GR-110V-4 and T50-GR-110v-4.5 - Multi position side handle
- T50-GR-110V-4 and T50-GR-110v-4.5 - Supplied with a side handle and pin spanner
- A range of different grade backing discs and fibre discs are sold separately, please contact Ecco for more information
- Easy maintenance
- Requires the use of appropriate Personal Protective Equipment (PPE) or Respiratory Protective Equipment (RPE) (please see pages XX for more details)
- Manufacturer’s instructions ensure safe use and optimum performance
- Available for sale or hire
Specifications
| T50-GR-110V-4 | T50-GR-110V-4.5 | T50-GR-110V-4.5 |
Power Input (W) | 730 | 720 | 720 |
Max. Load Speed (rpm) | 10,000 | 11,000 | 11,000 |
Spindle Thread | M10 x 1.5 | M14 x 2 | M14 or 5/8 |
Weight (kg) | 1.4 | 1.9 | 1.8 |
Vibration K Factor (m/sec2) | | | 1.5 |
Vibration Artificial Wheel (m/sec2) | | | 8.5 |
Sound Pressure Level (dBA) | Cell | 102 | 85 |
Sound Power Level (dBA) | | 91 | 96 |
Material | Plastic-PA6-GF30 | Aluminium Gear Housing | |
Compatible Wheel Disc Diameter (mm) | 100 | | 125 |
Bore Diameter (mm) | | | 22.23 |
Rubber Sanding Plate Diameter (mm) | | 115 | |
Wire Cup Brush Diameter (mm) | | 75 | |
Length (mm) | 254 | 318 | 266 |
Height (mm) | | 103 | |
Grinder Angle (°) | 90 | 90 | 90 |
