Graco Xtreme XL Sprayer

Products Spray Machines Graco Xtreme XL Sprayer

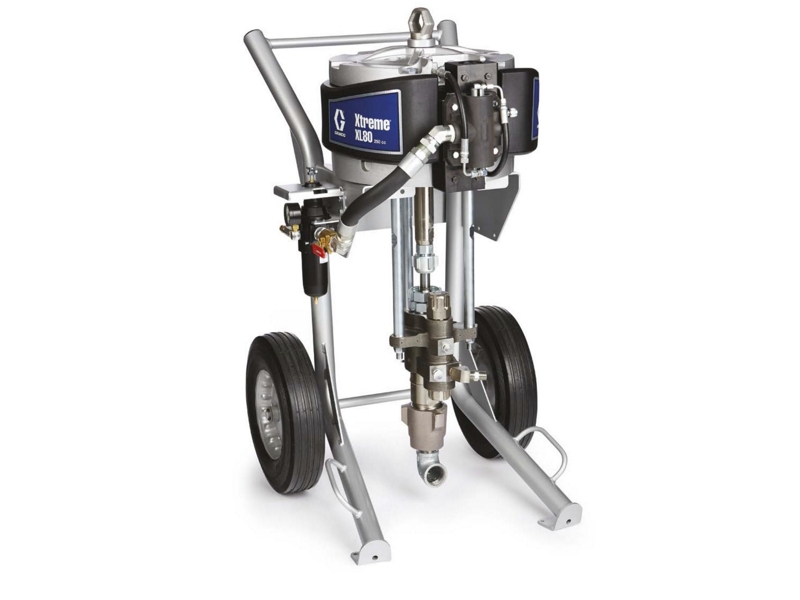

Graco Xtreme XL Sprayer

Description
The Graco Xtreme XL Sprayer is perfect for large jobs requiring a high-output sprayer. It is available in four models and can run up to six guns. It performs with virtually no pulsation or pattern fluctuation and offers a superior finish even in oily, dirty and wet air environments.
Features

  • Available in four models - XL45, XL70, XL80 and XL95
  • A higher output per cycle reduces the number of cycles per job
  • Enables the use of multiple guns with almost no pulsation
  • Eliminates icing stalls, increasing the available work time
  • Available for sale or hire
Specification
ProductXL45*XL70XL80XL95
Output per cycle (cc)430290250220
Maximum Working Pressure, Bar (psi, MPa)3330 (4800 , 33)500 (7250 , 50)500 (7250 , 50)500 (7250 , 50)
Maximum Air Input Pressure, Bar (psi, MPa)6.9 (100 , .69)6.9 (100 , .69)6.1 (88 , .61)5.2 (76 , .52)
Output at 60 Cycles/min lpm (gpm)25.4 (6.7)17.4 (4.6)15.1 (4)12.9 (3.4)
Uses Duro-Flo Lower

Product Code Description Add to Quote
XL45 Graco Xtreme XL Sprayer XL45
CONTACT
XL70 Graco Xtreme XL Sprayer XL70
CONTACT
XL80 Graco Xtreme XL Sprayer XL80
CONTACT
XL95 Graco Xtreme XL Sprayer XL95
CONTACT
