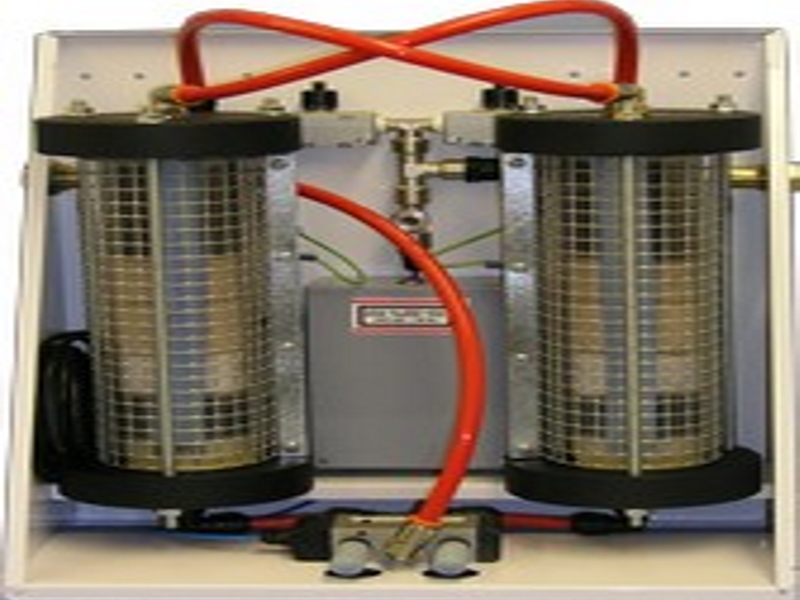

Niltox Filters
Description
The Niltox AR range consists of six purifiers providing air for one to six operators. The filter units use
pressure swing technology to provide a fully regenerating system providing air for twelve months or up
to 1000 hours.
Features
- Niltox purifiers are a range of compressed air breathing purifiers designed to deliver compressed air to meet current British and European Standards (BSEN529 EN12021, COSHH)
- Remove carbon monoxide and carbon dioxide
- Highly visible colour change monitor that gives continuous indication of the unit’s status
- Easily serviced
- The colour change monitor will allow reduced air quality testing intervals
- Removes water vapour, carbon monoxide, carbon dioxide, oil vapour, smell dirt and dust as well as a whole range of other contaminants
- Manufacturer’s instructions ensure safe use and optimum performance
- Available for sale and hire
| 6AR | 12AR | 18AR | 24AR | 30AR | 36AR |
Width (mm) | 400 | 400 | 400 | 600 | 600 | 600 |
Depth (mm) | 240 | 240 | 240 | 300 | 300 | 300 |
Height (mm) | 500 | 740 | 970 | 800 | 1040 | 1040 |
Outlet Flow (l/m) | 180 | 360 | 540 | 720 | 900 | 1080 |
Purge Flow (l/m) | 42 | 84 | 126 | 168 | 210 | 252 |
Total Flow (l/m) | 222 | 444 | 666 | 888 | 1110 | 1332 |
Max. Pressure (bar) | 10 | 10 | 10 | 10 | 10 | ?? |
Min. Pressure (bar) | 4 | 4 | 4 | 4 | 4 | ?? |
Rate Pressure (bar) | 7 | 7 | 7 | 7 | 7 | ?? |
Max. Temperature (°C) | 50 | 50 | 50 | 50 | 50 | ?? |
Min. Temperature (°C) | 1 | 1 | 1 | 1 | 1 | ?? |
Rated Temperature (°C) | 20 | 20 | 20 | 20 | 20 | ?? |
