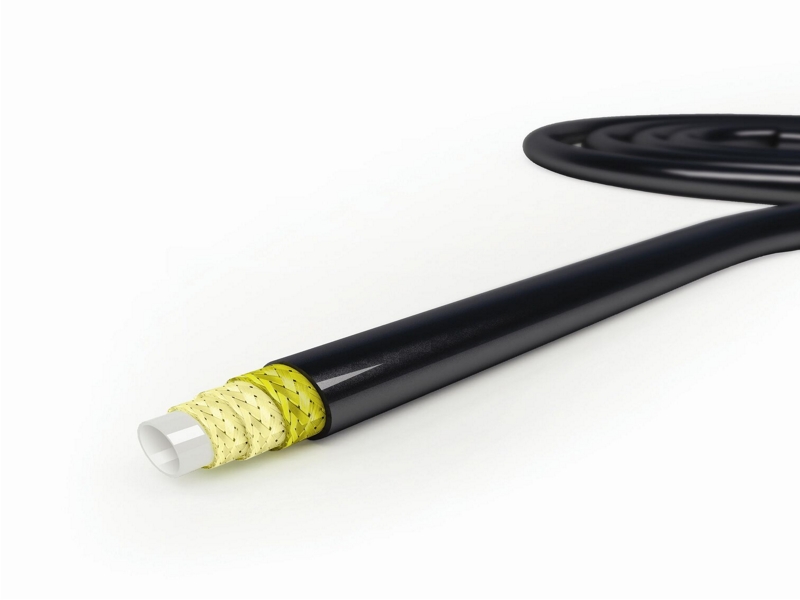

Wire Airless Paint Spray Hose-VHP Hose
Description
Ecco provides a range of Two Wire Braided Hoses for different lengths and bores.
| H40-XX-VHP-XXX |
|---|
| Internal Diameter (mm) | 6.4 mm, 1⁄4 inch | 9.5 mm, 3/8 inch | 12.7 mm, 1⁄2 inch | 19.1 mm, 3⁄4 inch |
| External Diameter (mm) | 14.0 | 17.5 | 22.0 | 32 |
| Working Pressure | 700 bar, 10,157 psi | 700 bar, 10,157 psi | 520 bar, 7,545 psi | 450 bar, 6,530 psi |
| Burst Pressure | 2,800 bar, 40,628 psi | 2,800 bar, 40,628 psi | 2,080 bar, 30,180 psi | 1,800 bar, 26,118 psi |
| Safety Factor | 4.0 | 4.0 | 4.0 | 4.0 |
Hose Length
| Length (M) | Product Code |
|---|
| 1.0 | 01 |
| 2.0 | 02 |
| 3.0 | 03 |
| 5.0 | 05 |
| 7.5 | 75 |
| 10.0 | 10 |
| 15.0 | 15 |
| 30.0 | 30 |
Please Specificy One Fitting For Each Hose End
| Fitting | Product Code |
|---|
| 1⁄4” BSP (F) | A |
| 3/8” BSP (F) | B |
| 1⁄2 ” BSP (F) | C |
| 3⁄4”BSP (F) | D |
| 1⁄4” NPS (F) | E |
| 3/8” NPS (F) | F |
| 1⁄2” NPS (F) | G |
| M16 x 1.5 (F) | H |
| 1⁄2” JIC (F) | J |
| 1⁄4” BSP (M) | K |
| 3/8” BSP (M) | L |
| 1⁄2” BSP (M) | M |
| 1⁄4” NPS (M) | N |
| 3/8” NPS (M) | P |
| M16 x 1.5 (M) | Q |
| 1⁄2” JIC (M) | R |
Please Note:
H40-XX-VHP-XXX
XX refers to internal Diameter
XXX refers to the length
