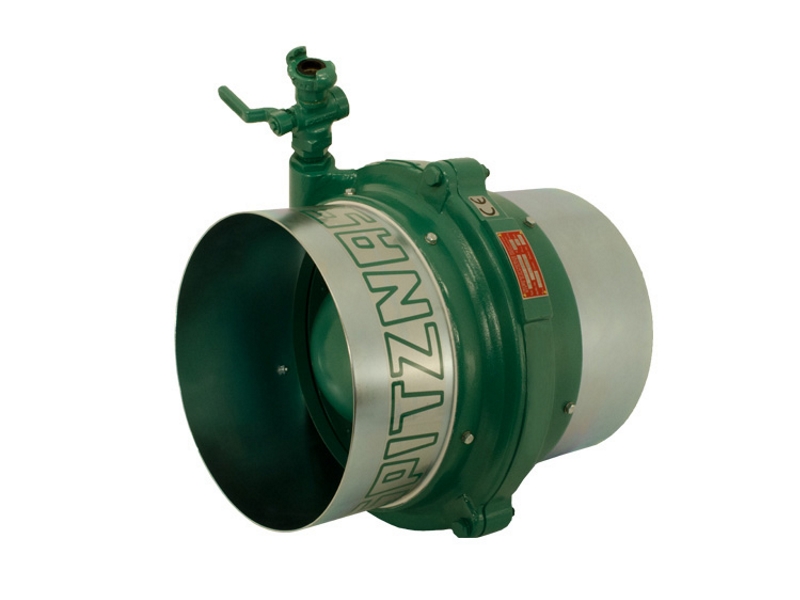

Axial Fans

Description:
The Spitznas ATEX products are a range of high-quality fans. They are constructed with materials to reduce the risk of generating heat or sparks. Ecco offers two options, the ATEX Electric Fan and the ATEX Pneumatic Fan.
Specifications

35013

	S90-SPITZ-300	S90-SPITZ-500
Nominal Diameter(mm)	300	500
Length(mm)
520
Weight(kg)
46
Max. Operating Presssure(bar)	5(75psi)	4(60psi)
Air Consumption(Blowing)m3/min	0.45	2.73
Volume Flow(Unresticted Discharge)m3/min	0.57	4.33
Internal Hose Diameter(mm)	13	19
Noise Level(dba)	85	105

Features

Complies with the requirements of ATEX Guideline 2014/34/EU

ATEX classification, Group II, Category 2Gc T6

Available for sale or hire
