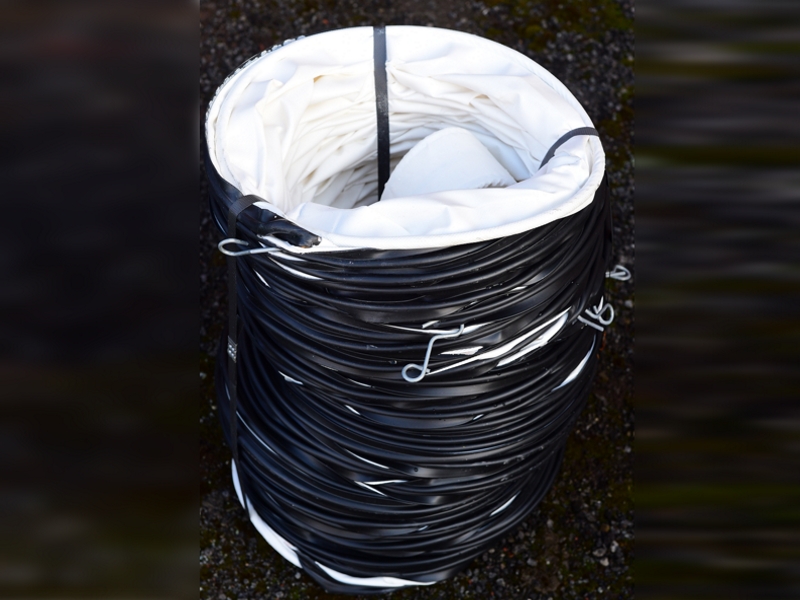

Exhaust Ventilation Ducting

Specifications

	H80-8300150	H80-850075
Size	8mx300mmx150pitch	8mx500mmx75pitch
Tensile Strength
Warp	2150	2150
Weft	1750	1750
Tear Strength
Warp	320	320
Weft	320	320
Weld Tensile Strength
Warp	1800	1800
Weft	1500	1500
Weight(kg/pm)	0.65	0.65

Features

Used for exhaust or reversible ventilation systems

White double sided PVC coated heavy duty polyester fabric

Made from flame retardant and anti-static PVC coated material of varying strengths to meet the customer specifications

Exhaust ducting supplied in any length up to 30m and any diameter from 200mm to 1500mm

Wire reinforcement, strength and pitch can be varied to meet the exhaust suction required

Ducting supplied complete with suspension hooks and coupling

Steel wire end rings incorporated into each end of the ducts for coupling

Fully welded seams at least 80% of material strength

Easy maintenance

Flame retardent also available

Please Note
Product is supplied with banding.

Product Code Description Add to Quote

H80-8300150 Exhaust Ventilation Ducting 150 Pitch
CONTACT

H80-8500750 Exhaust Ventilation Ducting 75 Pitch
CONTACT

Product Code	Description	Add to Quote
H80-8300150	Exhaust Ventilation Ducting 150 Pitch	CONTACT
H80-8500750	Exhaust Ventilation Ducting 75 Pitch	CONTACT
